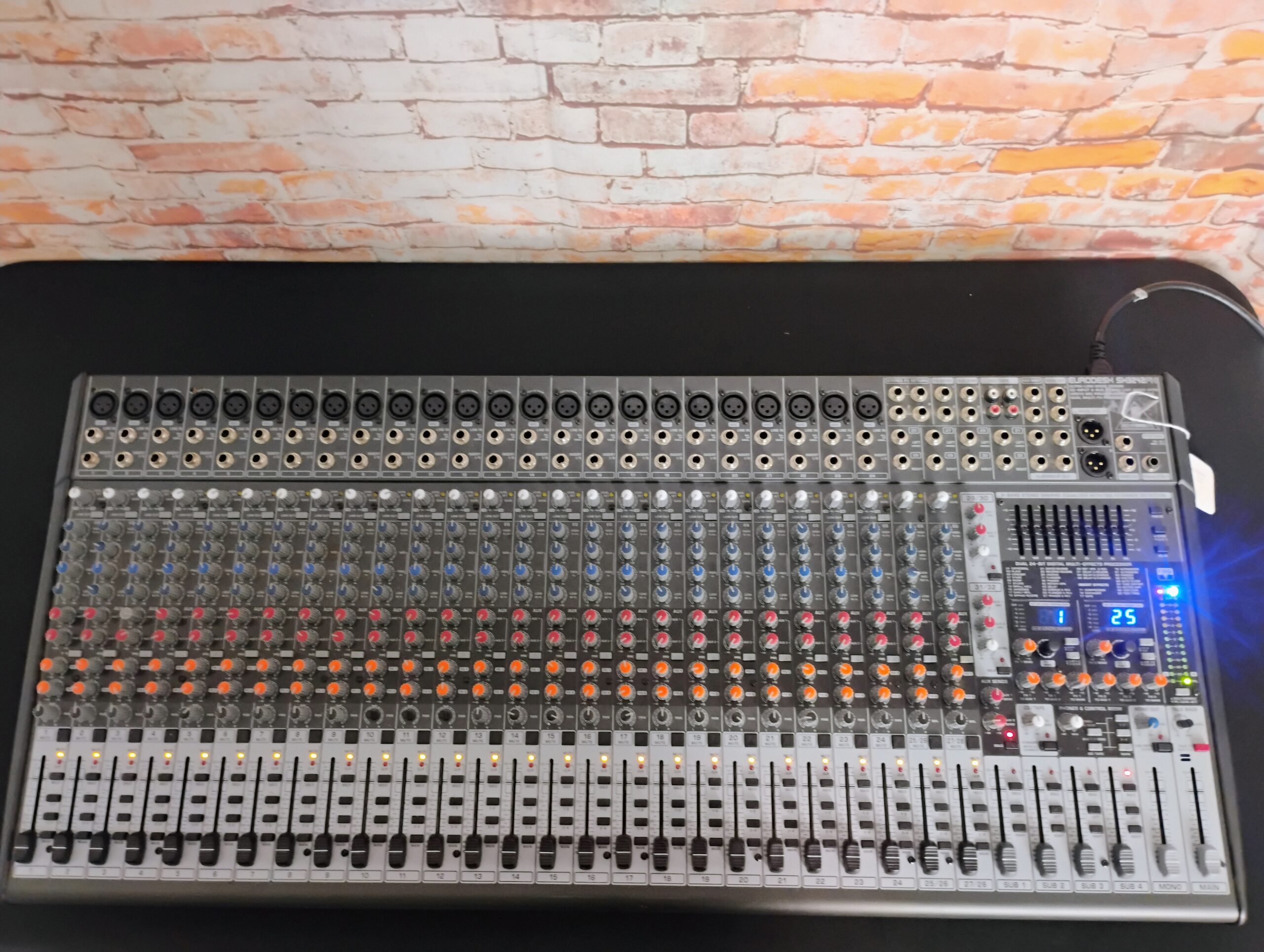

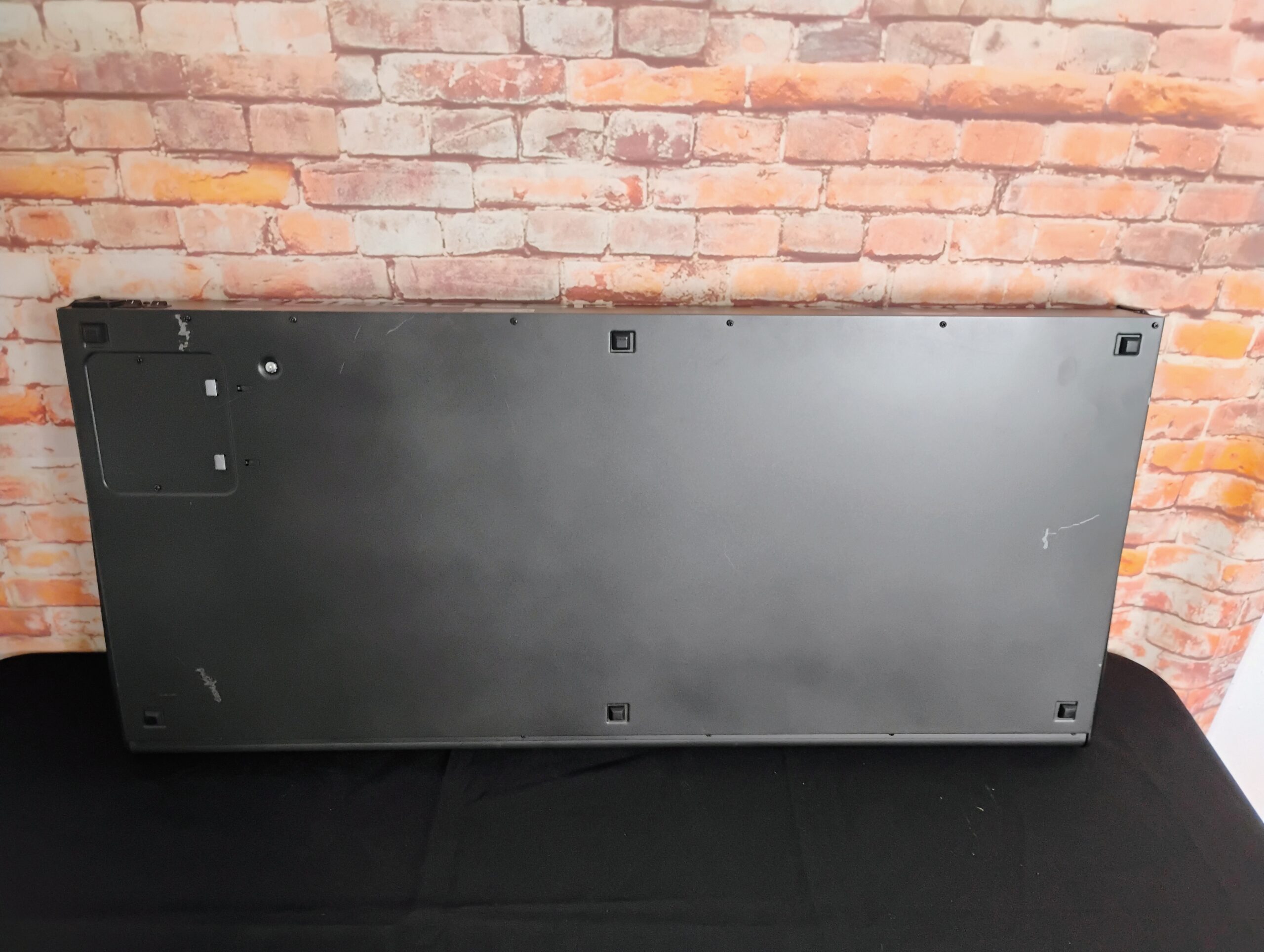

Some scratches/scuffs, and missing one knob for the talkback level pot, but everything works as it should.
Microphone inputs (XENYX Mic preamp)
Type
XLR connector, electronically balanced, discrete input circuit
Mic E.I.N. (20 Hz – 20 kHz)
@ 0 Ω source resistance
-134 dB / 135.7 dB A-weighted
@ 50 Ω source resistance
-131 dB / 133.3 dB A-weighted
@ 150 Ω source resistance
-129 dB / 130.5 dB A-weighted
Frequency Response
<10 Hz – 160 kHz
-1 dB
<10 Hz – 200 kHz
-3 dB
Gain range
+10 dB to +60 dB
Max. input level
+12 dBu @ +10 dB GAIN
Impedance
approx. 2.6 kΩ balanced
Signal-to-noise ratio
110 dB / 112 dB A-weighted (0 dBu In @ +22 dB GAIN)
Distortion (THD + N)
0.005 % / 0.004 % A-weighted
Line Input
Type
¼” TRS jack, electronically balanced
Impedance
approx. 20 kΩ balanced, approx. 10 kΩ unbalanced
Gain range
-10 dB to +40 dB
Max. input level
+22 dBu @ 0 dB GAIN
Fade-Out Attenuation (Crosstalk Attenuation)
Main fader closed
90 dB
Channel muted
84 dB
Channel fader muted
85 dB
Frequency response (Mic In ➝ Main Out)
<10 Hz – 90 kHz
+0 dB / -1 dB
<10 Hz – 160 kHz
+0 dB / -3 dB
Stereo Inputs
Type
2 x ¼” TRS jack, balanced
Impedance
approx. 20 kΩ balanced, approx. 10 kΩ unbalanced
Gain range
-20 dB to +20 dB
Max. input level
+22 dBu @ 0 dB GAIN
CD/Tape In
Type
RCA connector
Impedance
approx. 10 kΩ
Max. input level
+22 dBu
Equalizer
EQ Mono Channels
LOW
80 Hz / ±15 dB
MID
100 Hz to 8 kHz / ±15 dB
HIGH
12 kHz / ±15 dB
LOW CUT
80 Hz, 18 dB/oct.
EQ Stereo Channels
LOW
80 Hz / ±15 dB
LOW MID
500 Hz / ±15 dB
HIGH MID
3 kHz / ±15 dB
HIGH
12 kHz / ±15 dB
Main Outputs (XLR)
Type
XLR connector, electronically balanced
Impedance
approx. 240 Ω balanced, approx. 120 Ω unbalanced
Max. output level
+28 dBu
Main Outputs (¼”)
Type
¼” TRS jack, electronically balanced
Impedance
approx. 240 Ω balanced, approx. 120 Ω unbalanced
Max. output level
+28 dBu
Main Inserts
Type
¼” TRS jack, unbalanced
Max. input level
+22 dBu
Mono Output
Type
¼” mono jack, unbalanced
Impedance
approx. 120 Ω
Max. output level
+22 dBu
Low pass
variable, 30 Hz to 200 Hz, 18 dB/oct.
Phones/CTRL Room Output
Type
¼” TRS jack, unbalanced
Max. output level
+19 dBu / 150 Ω (+25 dBm)
CD/Tape Out
Type
RCA connector
Impedance
approx. 1 kΩ
Max. output level
+22 dBu
DSP
Type
Texas Instruments
Converter
24-bit delta-sigma, 64/128-times oversampling
Sampling rate
46 kHz
Main Mix System Data (Noise)
Main mix @ -∞, channel fader @ -∞
-100 dB / -102.5 dB A-weighted
Main mix @ 0 dB, channel fader @ -∞
-82 dB / -85 dB A-weighted
Main mix @ 0 dB, channel fader @ 0 dB
-72 dB / -75 dB A-weighted
Power Supply
Power consumption
50 W
Fuse (100 – 240 V~, 50/60 Hz)
T 2,0 A H 250 V
Mains connector
Standard IEC receptacle
Physical/Weight
Dimensions (H x W x D)
100 x 896 x 410 mm (3.9 x 35.3 x 16.1″)
