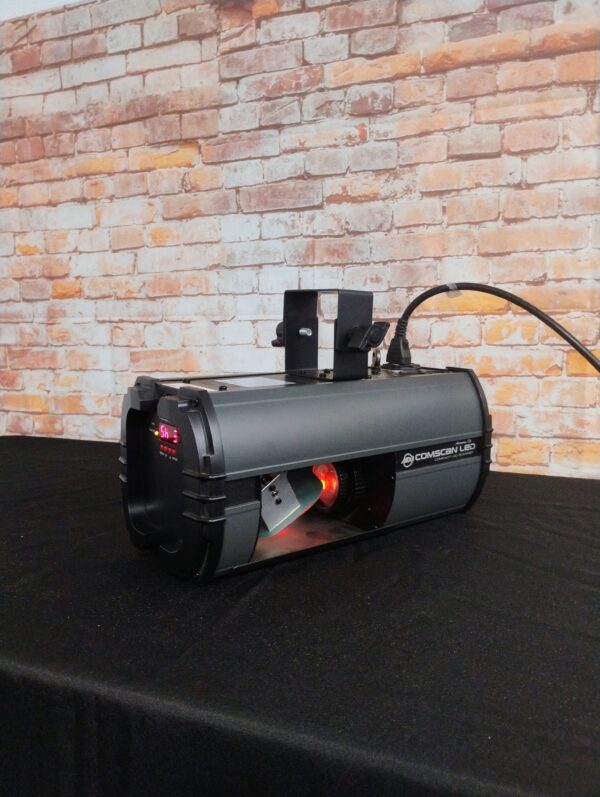

Compact & portable high performance mobile DMX scanner with an advanced high performance LED source

8 gobos/colors + spot

Gobos & Color are on the same wheel

DMX-512 protocol (5 DMX Channels)

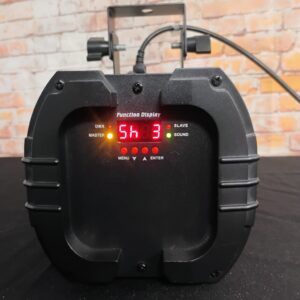

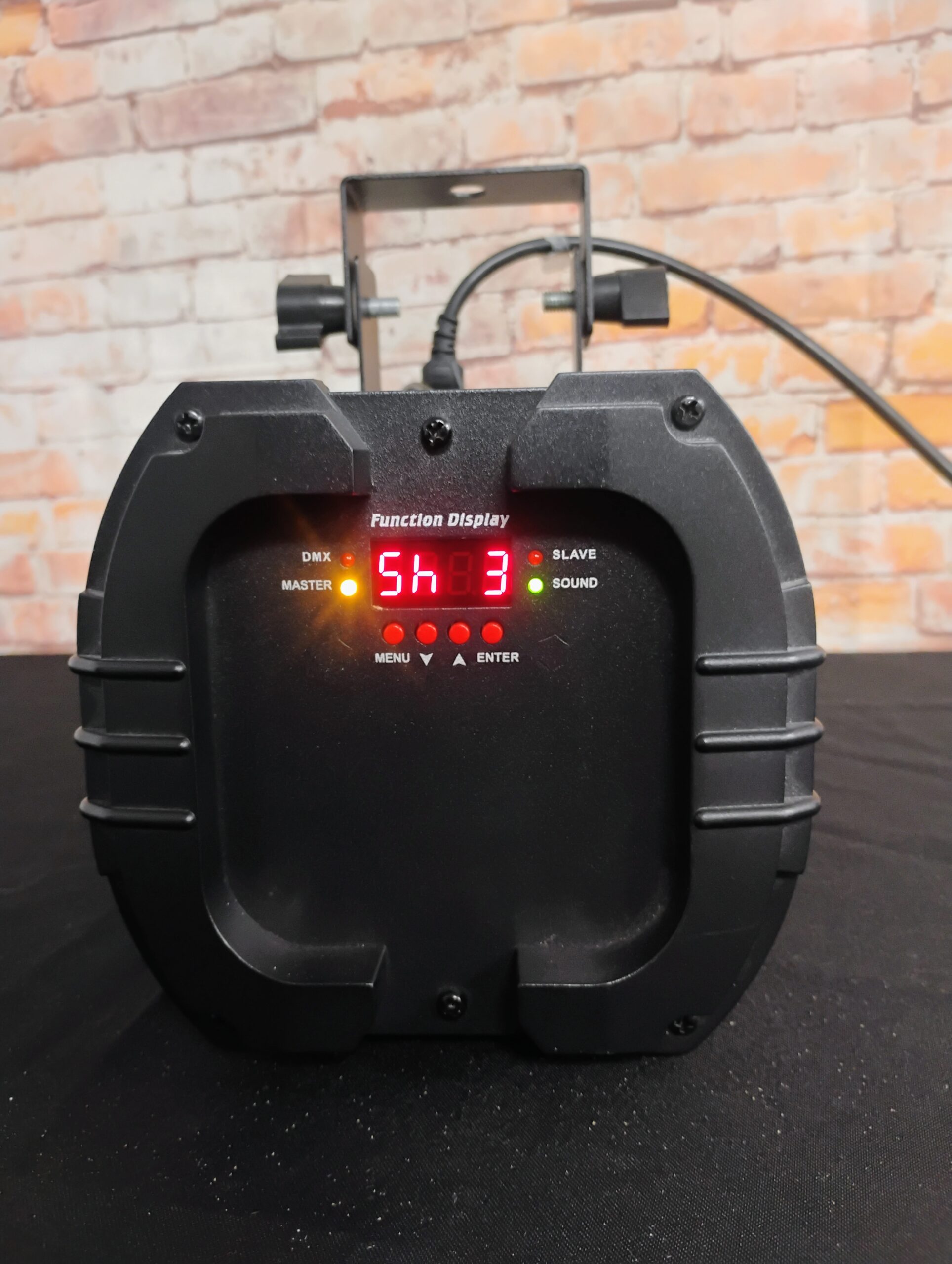

4-Button menu system LED Display making it easy to navigate

3 Operational modes: DMX controller, Primary/Secondary & Sound Active

Exciting built-in lighting programs

Pan/Tilt Inversion Mode: when using 4 scanners in Primary/Secondary Scanner 1 & 3 sync opposite Scanner 2 & 4

Manual focusing lens

Gobo Shake effect (via DMX Controller ONLY)

Dimming: 0-100% (via DMX Controller ONLY)

Strobe effect

Beam angle: 13-degrees

X/Y mirror movement

Pan: 166-degree (DMX); 104-degree (Sound Active)

Tilt: 54-degree (DMX); 40-degree (Sound Active)

1.8 degree Stepper motors with micro stepping

Hanging Bracket + safety hook included

Power consumption: 30W max

Compatible with American DJ UC3 Series easy-to-use controllers (sold Separately)

Run all night – No duty cycle – Unit stay cool all night

No cooling fan required – Very little maintenance needed

Extreme long lifetime of the LEDs (30,000 hr. rating)

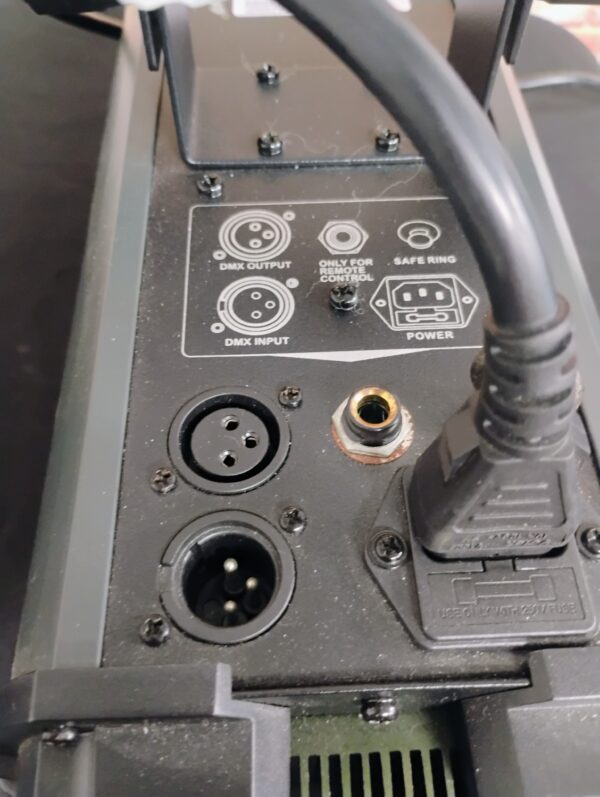

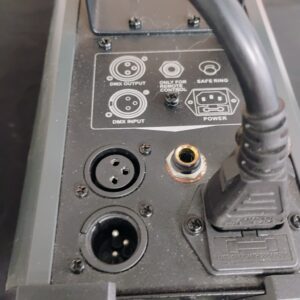

Multi-voltage operation: AC 100V~240V 50/60Hz- IEC socket

Dimensions (LxWxH): 13.5″x6.25″x8″ / 344x160x200mm

Weight: 8 lbs. / 3.6kg.
